Godiag GT107: Repair DSG Gearbox for PCMtuner KESS V2

Godiag GT107 Gearbox Data Adapter is designed to clone, diagnose and repair DSG gearbox ECU for maintenance engineers. Supports gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501. Perfectly compatible with PCMTuner, KESS V2, PCMFlash, KTMBench, etc.

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-1

Features

Read, write, adjust DSG gearbox data.

Support PCMflash module 58 all DSG models.

Easy operation, 2 selection modes for PCMFlash(auto/manual), manual mode for other ECU diagnostic software.

Indicators can show communication status during working.

Support car battery power supply.


Attached:

Godiag DSG GT107 PIN OUT

DQ200(0AM, 0CW), DQ250(02E,0D9), VL381(0AW), DQ500(0BT, 0BH)

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-2

V30(01J), VL300(01J)

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-3


DL382(0CK), DL501(0B5), Renault DC0/DC4 Gen2, Honda LuK-UDCT

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-4


PCMTuner + GT107 clone gearbox connection diagram

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-5


KESS V2 + GT107 clone gearbox connection diagram

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-6


GT107 clone gearbox on car connection diagram

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-7

Godiag GT107 + PCMTuner read DQ250(02E) ECU

1. Connect GT107, gearbox & PCMTuner;


2. Press ignition button to switch manual mode for diagnosis:

(GT105 red & blue lights are continuous flashing)

[58] VAG: DQ250C(02E)K-Line/ >> Identification


3. Press GT107 button to switch auto mode for data reading:

(GT105 red & blue lights are on but stop flashing)


[59] DQ250E/FMQB Boot(MICRO) >> Identification >> Read

(* When GT107 green light is on, it's "Auto", otherwise it's "Manual".)

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-8

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-9

Godiag GT107 + PCMTuner chip tuning DQ200 ECU

Select ECU: [58] VAG: DQ200/MQB Boot(MICRO)

(*PCMTuner supports 120Ω power supply, no need to press red button for short-circuit. For KESS will need.)

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-10

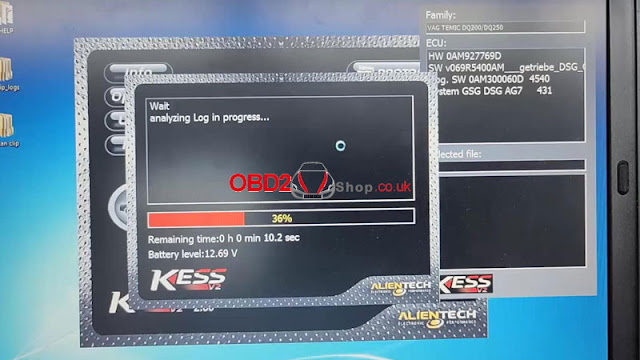

Godiag GT107 + KESS V2 read DQ200 ECU

1. Connect GT107, gearbox & KESS according diagram;

2. Press 120Ω red button & ignition button for manual mode;

3. Open KESS software:

Temic DQ200 >> Read >> ID/Reading

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-11

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-12

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-13


Godiag GT107 + KESS V2 read DQ250 ECU

ECU model: DQ250(02E)

KESS path:

Temic DQ250 >> OK >> ID/Reading


godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-14

godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2-15

http://blog.obd2shop.co.uk/godiag-gt107-repair-dsg-gearbox-for-pcmtuner-kess-v2/
