Xhorse Multi-Prog + GODIAG GT107 Read Audi A3 DQ250 EGS

This is a tutorial on how to use Xhorse Multi-Prog&GODIAG GT107 to read VAG MQB DQ250 data by BENCH. Meanwhile, you'll need the new GODIAG G-V ECU Cable to connect them for reading, writing, or cloning ECU.

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-1

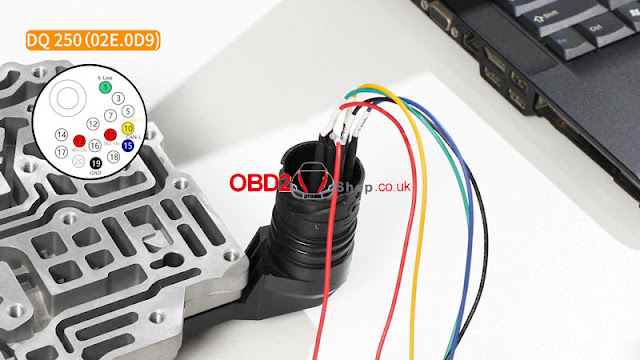

Follow the wiring diagram to connect Multi-Prog, DQ250(02E.0D9) and GODIAG.

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-2

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-3


Power on Multi-Prog and open software.

Device >> VAG_TEMIC_DQ250-MQB(Audi->A3) >> OK

INT EEPROM >> Read

Turn on GT107 power.

I am reading success.

Save the EEPROM file.

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-4

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-5

xhorse-multi-prog-godiag-gt107-read-audi-a3-dq250-egs-6

INT FLASH >> Read

Reading success.
