How to Use GODIAG GT115 MQB IMMO4 Platform (Step-By-Step Guide)

GODIAG GT115 VAG Test Platform is designed for Volkswagen’s MQB system to simplify off-vehicle IMMO programming, key matchingand diagnostics. Featuring a POGO PIN for stable dashboard data reading/writing, it ensures a secure connection without damaging the cable - ideal for efficient and reliable servicing.


This is a GODIAG GT115 User Manuel & complete guide for VAG MQB IMMO programming & diagnositics.


How to Detect Keys with the IMMO4 CAN-BUS UDS Platform?

how-to-use-godiag-gt115-mqb-immo4-platform-1

Step 1: Connect the GT115 to the dashboard and connect it to the power supply.

Step 2: Press the start button, press the ignition button, and then press the Dash

button.

Step 3: The instrument panel displays safe, and the key sensor coil flashes for 3

seconds and then goes out. It indicates that the key is not recognized.


how-to-use-godiag-gt115-mqb-immo4-platform-2

Step 4: Connect the GT115 to the dashboard and connect it to the power supply.

Step 5: Press the start button, press the ignition button, and then press the Dash

button.

Step 6: The instrument panel displays the mileage, and the key sensor coil flashes

and then goes out. It indicates that the key has been identified.


How to Use POGO PIN on IMMO4 CAN-BUS UDS Platform?

how-to-use-godiag-gt115-mqb-immo4-platform-3

Step 1: Connect GT115 to the instrument panel and power it on.

Step 2: First, press the red ignition button, then press the “Dash” button.


how-to-use-godiag-gt115-mqb-immo4-platform-4

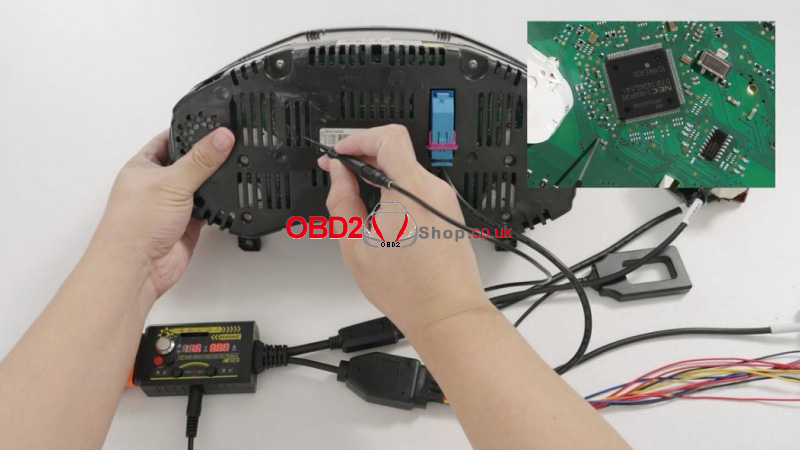

Step 3: Then use the pogo pin probe to poke the pogo pin point in the instrument

chip.


how-to-use-godiag-gt115-mqb-immo4-platform-5

Step 4: After poking, do not let go and press the start button again.

Step 5: Wait for 5 seconds and then release the pogo pin probe.


how-to-use-godiag-gt115-mqb-immo4-platform-6

Step 6: At this time, only one light is on, indicating that the instrument has successfully entered the pogo pin mode.


How to Use on the MQB Platform?

how-to-use-godiag-gt115-mqb-immo4-platform-7

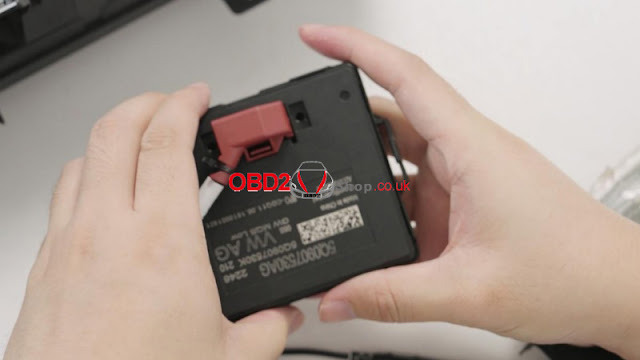

Step 1: Connect the gateway.


how-to-use-godiag-gt115-mqb-immo4-platform-8


Step 2: Connect the BCM module.


how-to-use-godiag-gt115-mqb-immo4-platform-9


Step 3: Connect the instrument.


how-to-use-godiag-gt115-mqb-immo4-platform-10


Step 4: Connect the engine.


how-to-use-godiag-gt115-mqb-immo4-platform-11


Step 5: Finally, turn on the power.


how-to-use-godiag-gt115-mqb-immo4-platform-12

Step 6: Press the start and red ignition switch buttons again.

Step 7: Then you can connect other devices for testing, diagnosis, programming, and coding.


How to Use Engine Independent Communication?

how-to-use-godiag-gt115-mqb-immo4-platform-13

Step 1: Connect the engine with colored jumper wires.


how-to-use-godiag-gt115-mqb-immo4-platform-14

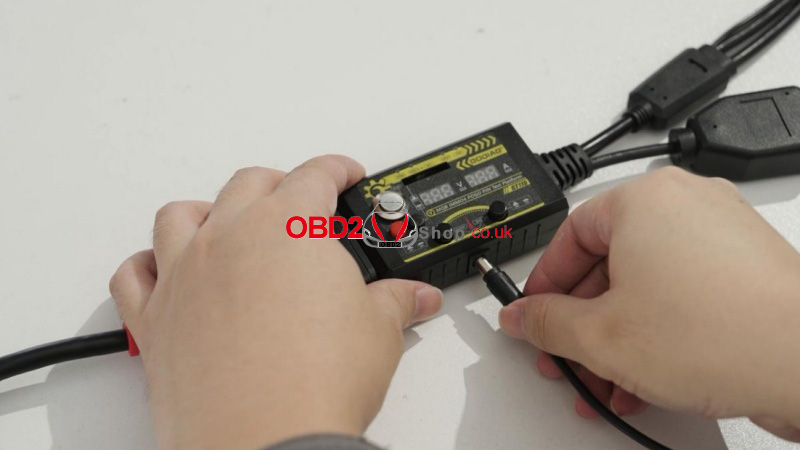

Step 2: Connect to power.


how-to-use-godiag-gt115-mqb-immo4-platform-15

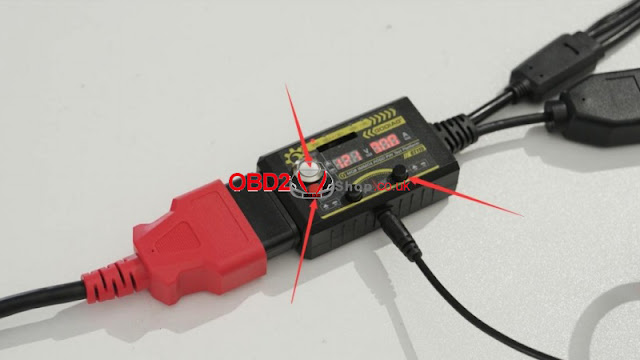

Step 3: Press in sequence: power switch, start, ignition switch IGN, engine button

switch ENG.

Step 4: Then connect other devices to the OBD port for testing and diagnosis.
